Ob -Level Lift & Slide Parking System
Tsheb Loj
• Max Length (mm): 5300
• Max Dav (mm): 2050
• Qhov siab (mm): 1550/2050
• Nyhav (kg): Tsawg dua lossis sib npaug li 2350
Lifting ceev: 4.5m / min
Hloov ceev: 8.0m / min
Tswj txoj kev: khawm / IC Card

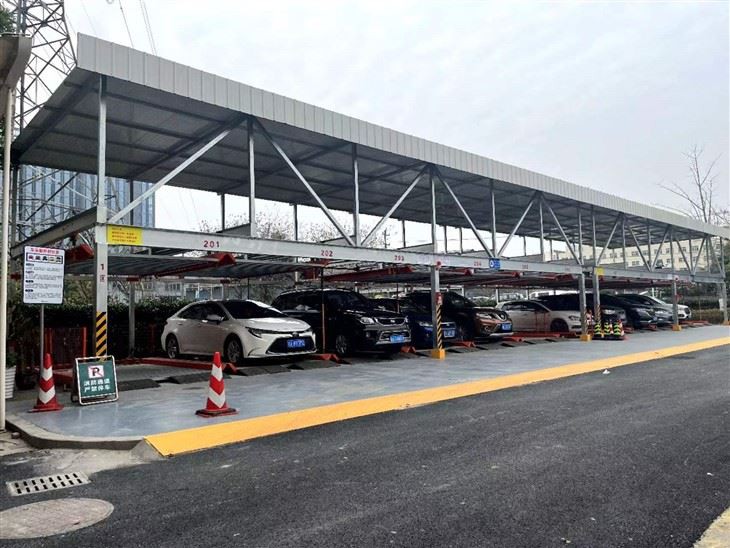

Ib thaj chaw nyob hauv Shanghai tau dhau los ntawm qhov chaw nres tsheb tsis txaus tau ua haujlwm tau zoo ntawm Comant txoj kev cai-uaOb -Level Lift & Slide Parking System. Cov lus teb muaj txiaj ntsig no tau hloov pauv qhov chaw hauv pem teb tsawg, ua kom muaj peev xwm nres tsheb mus rau 191 zoo- thaj chaw teeb tsa thiab daws teeb meem ntev - cov neeg nyob hauv chaw nres tsheb sib tw.
Engineered rau High -Density Residential Performance:
Optimized Space Utilization: Ob -Level Lift & Slide Parking System facets a modular lift-thiab-slide design, tso cai rau ob peb lub cev muaj zog kom nres hauv qhov chaw me me. Cov yam ntxwv ntawm cov qauv yog qhov tseeb-engineered nrog finite qhov teeb meem ntsuam xyuas (FEA) validation los ua tej yam sib npaug hauv qab uas tsis yog - nres siv nyob rau hauv, ua kom muaj peev xwm tshaj plaws nrog rau kev cuam tshuam kev nyab xeeb.
Txhim khu kev nyab xeeb & kev ntseeg tau zoo: Nruab nrog tsim- hauv kev tiv thaiv kab ke- suav nrog cov khoom siv tiv thaiv - poob xauv, photoelectric sensors, kev tiv thaiv overload, thiab kev ua haujlwm kub ceev - lub gadget xyuas kom tsis txhob muaj kev ua haujlwm txhua hnub. Cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob yog los ntawm ISO- cov neeg muab ntawv pov thawj, muab kev ntseeg tau zoo tag nrho qhov tseem ceeb rau siab - siv cov chaw nyob.
Technical Specifications
|
Yam khoom |
Puzzle Parking System | |
|
Tsheb Loj |
Max Ntev (mm) |
5300 |
|
Max dav (mm) |
2050 |
|
|
Qhov siab (mm) |
1550/2050 |
|
|
Qhov hnyav (kg) |
Tsawg dua lossis sib npaug li 2350 |
|
|
Tsheb muaj peev xwm |
(2n-1) cov Qhov twg n yog kab ntau ntau |
|
|
Lifting Tsav |
2.2 kwm |
|
|
Shifting Tsav |
0.2 kwm |
|
|
Lifting ceev |
4.5m / min |
|
|
Hloov ceev |
8.0m / min |
|
|
Tsav txoj kev |
Lub cev muaj zog-tsav, Chain lossis Hlau Rope Lifting |
|
|
Tswj txoj kev |
Khawm / IC Card |
|
|
Fais fab mov |
Peb -theem 380V 50Hz |
|
Orthographic Projections
Khoom Qhia
